最强P43主板非他莫属

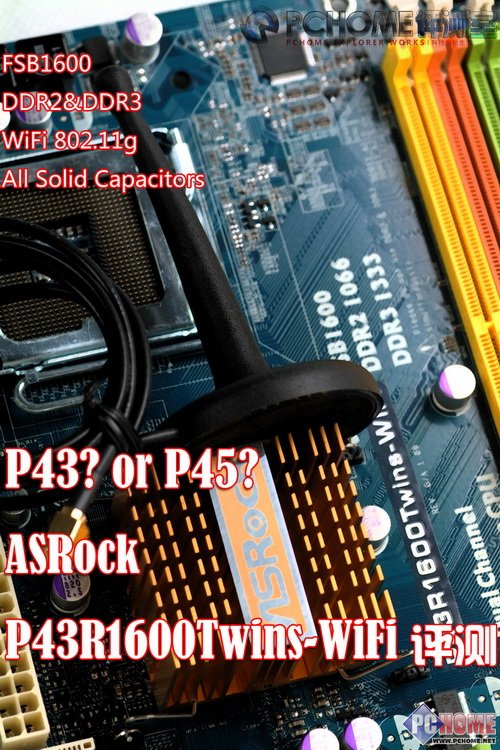

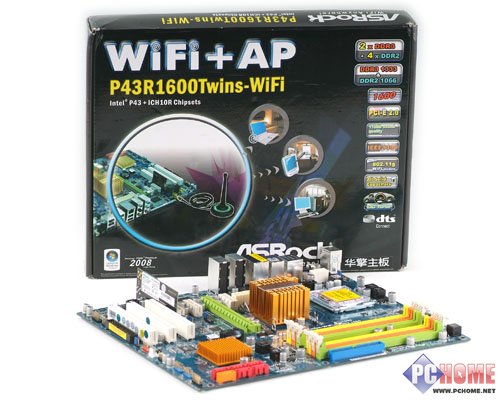

Bearlake芯片组又悄然无声的被P45/P43取代，当习惯了更新芯片组速度的时候，更加关心的就是更新后，新的芯片组主板价格问题。是否过高或是有BUG等等。但P45芯片组更新来的相对较快，比起P35来说。至少从评测角度来说P45的到来就是一些芯片规格的变化，更新了一些必须要更新的规格，如：PCI-E终于做到了2.0规格，南桥用上了ICH10......比起P35更替P965来说P45变化还是相当“大”地。对于芯片组变化这里先不多说，我们评测室近期也收到了很多P43的主板，Kevin同学也刚刚完成一篇文章《全球首款 七彩虹P43蓝牙主板评测》。而今天K男带来的就是另外一款来自ASRock（华擎）的P43，型号为P43R1600Twins-WiFi。而这款来自华擎的P43主板，延续了华擎4Core1600P35-WiFi主板的设计特点，如：FSB支持到1600，同时支持DDR2跟DDR3内存，支持WiFi 802.11g的无线网卡，还有整个主板使用了全固态电容设计，个人觉得不比P45逊色多少，甚至会让一些号称P45的主板汗颜。
| Intel P45 Express Chipset | Intel P43 Express Chipset | Intel P35 Express Chipset | |
| Target Segment | Performance PC, Mainstream PC | Mainstream PC | Performance PC, Mainstream PC |
| Processor | LGA775 | LGA775 | LGA775 |
| Hyper-Threading Technology1 | Optimized for HT Technology | Optimized for HT Technology | Optimized for HT Technology |
| System Bus | 1333/1066/800 MHz | 1333/1066/800 MHz | 1333/1066/800 MHz |
| Max Memory | 16 GB | 16 GB | 8 GB |
| Memory Type | DDR3 and DDR2 no ECC | DDR3 and DDR2 no ECC | DDR3 and DDR2 |
| FSB/Memory Configurations | 1066/DDR2-667, | 1066/DDR2-667, | 1066/DDR2-667, |
| 800/DDR2-667, | 800/DDR2-667, | 800/DDR2-667, | |
| 1333/DDR3-1066, | 1333/DDR3-1066, | 1333/DDR3-1066, | |
| 1333/DDR3-800, | 1333/DDR3-800, | 1333/DDR3-800, | |
| 1066/DDR3-1066, | 1066/DDR3-1066, | 1066/DDR3-1066, | |
| 1066/DDR3-800, | 1066/DDR3-800, | 1066/DDR3-800, | |
| 800/DDR3-800, | 800/DDR3-800, | 800/DDR3-800, | |
| 1333/DDR2-800, | 1333/DDR2-800, | 1333/DDR2-800, | |
| 1333/DDR2-667, | 1333/DDR2-667, | 1333/DDR2-667, | |
| 1066/DDR2-800, | 1066/DDR2-800, | 1066/DDR2-800, | |
| 800/DDR2-800 | 800/DDR2-800 | 800/DDR2-800 | |
| Integrated Graphics Type | N/A | N/A | N/A |
| External Graphics Interface | PCI Express x16 | PCI Express x16 | PCI Express x16 |
| PCI Support | (1) x16 Gen2 or (2) x8 Gen2, (6) x1 Gen1 | (1) x16 Gen2, (6) x1 Gen1 | (1) x16 Gen1, (6) x1 Gen1 |
| Storage Interface/Ports | Serial ATA (3 Gbps/AHCI) 6 Ports eSATA Port Disable | Serial ATA (3 Gbps/AHCI) 6 Ports eSATA Port Disable | 4-6 Serial ATA (3 Gbps/AHCI), eSATA |
| Storage Technology | Intel Matrix Storage Technology (ICH10R only; RAID 0, 1, 5, 10) Intel Rapid Recovery Technology (ICH10R only) | Intel Matrix Storage Technology (ICH10R only; RAID 0, 1, 5, 10) Intel Rapid Recovery Technology (ICH10R only) | Intel Matrix Storage Technology with ICH9R; (RAID 0, 1, 5, 10) Command based port multiplier, Intel Rapid Recover Technology, Intel? Turbo Memory |
| Memory Controller Hub | 82P45 MCH | 82P43 MCH | 82P35 MCH |
| Supported Intel I/O Controller | Intel ICH10 Family: ICH10, ICH10R | Intel ICH10 Family: ICH10, ICH10R | Intel ICH9 Family: ICH9, ICH9DH, ICH9R |
| PCI Masters | 4 | 4 | 4 |
| USB Ports/Controllers | 12 USB Ports 2 EHCI Controllers Port Disable | 12 USB Ports 2 EHCI Controllers Port Disable | 12 USB Ports (Dual AHCI, port Disable)/eSATA |
| Audio | Intel High Definition Audio | Intel High Definition Audio | Intel High Definition Audio |
而这款来自华擎的P43主板，延续了华擎4Core1600P35-WiFi主板的设计特点，如：FSB支持到1600，同时支持DDR2跟DDR3内存，支持WiFi 802.11g的无线网卡，还有整个主板使用了全固态电容设计，个人觉得不比P45逊色多少，甚至会让一些号称P45的主板汗颜。作为普通消费者来说最适合的就是最好的，七彩虹的P43主板上设计了蓝牙模块，今天的华擎P43R1600Twins-WiFi功能上更多，规格来说更高一些。也说明大家在主板设计上不再居于同质化，这点作为普通消费者来说更加实惠，好了不多说了，回到正题开始评测。
